Capacitors are the backbone of stable electronic circuits, and Panasonic’s FR series stands out for its performance in demanding applications.

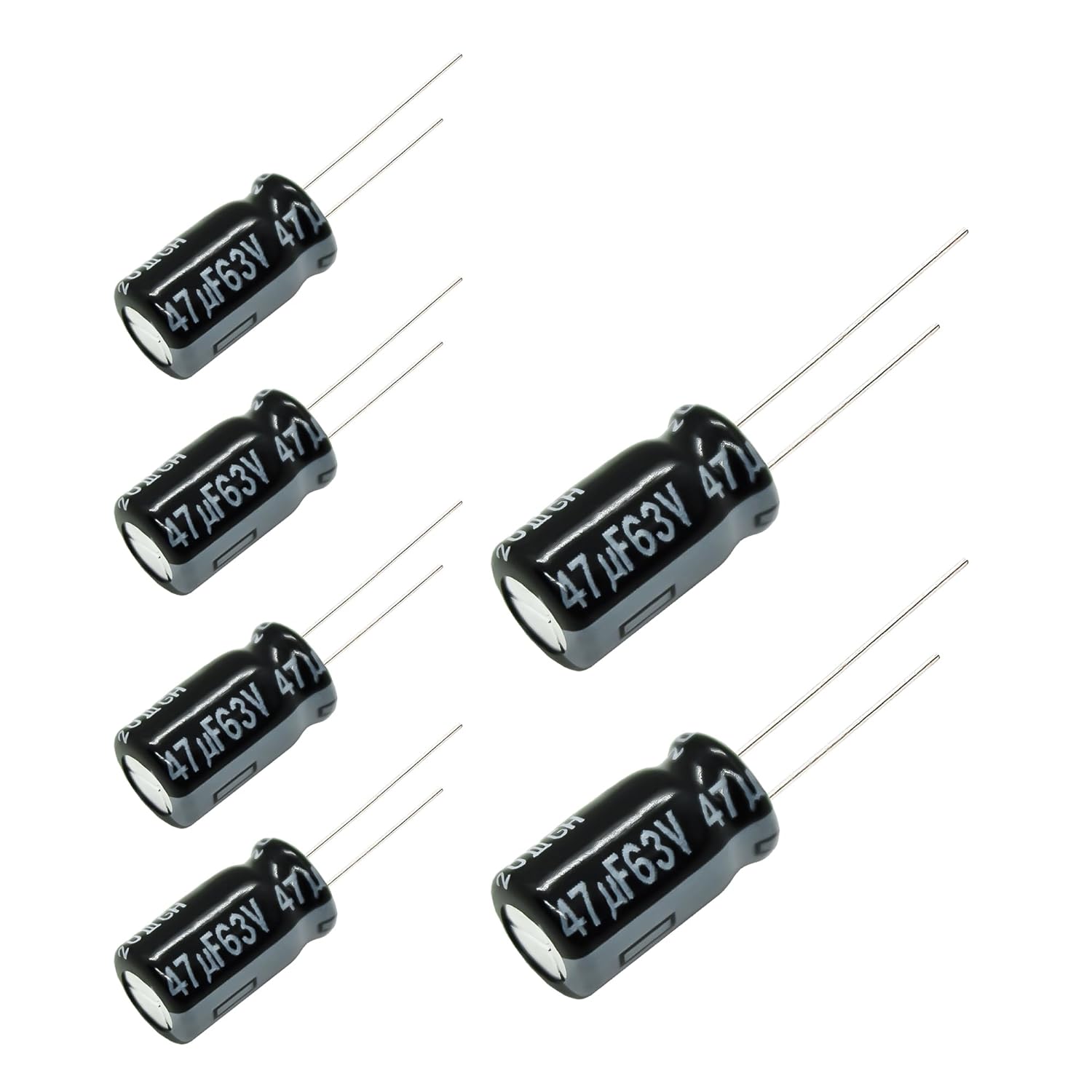

The 6 x Aluminum Electrolytic Capacitor 47uF 63V 6x11mm Panasonic (FR Series), available from Pacific Custom Engineering, provides a pack of six high-quality capacitors designed for efficient power filtering and decoupling.
Let’s dive into the features, applications, and considerations of this Panasonic FR series component to see how it fits into your electronic designs.
What Are Panasonic FR Series 47uF 63V Capacitors?
This pack includes six Panasonic FR series aluminum electrolytic capacitors, each with a capacitance of 47µF and a voltage rating of 63V, making them suitable for circuits operating up to 60V. Measuring 6mm in diameter and 11mm in height, these radial-lead capacitors feature a lead spacing of approximately 2.5mm, fitting well in compact PCB designs.
The FR series is known for its ultra-low equivalent series resistance (ESR) and high ripple current handling, with a rated ripple current of 284mA for this specification. They offer a lifespan of 5000 hours at 105°C, ensuring long-term reliability in challenging conditions. The capacitors are polarized, with markings to indicate correct installation orientation, and are constructed for durability across a variety of applications.
Panasonic’s FR series is engineered for high performance, and this pack from Pacific Custom Engineering ensures you’re getting genuine components for your circuits.
Key Features and Specifications
- Capacitance and Voltage: 47µF at 63V, ideal for low to medium voltage circuits.
- Dimensions: 6mm diameter x 11mm height, with a 2.5mm lead spacing, suitable for space-constrained designs.
- Low ESR: Ultra-low equivalent series resistance, minimizing energy loss in high-frequency applications.
- Ripple Current: Rated for 284mA, supporting stable performance in power circuits.
- Lifespan: 5000 hours at 105°C, ensuring durability in elevated temperatures.
- Operating Range: -40°C to +105°C, covering a wide range of environments.
Practical Applications
The Panasonic FR series 47uF 63V capacitors are versatile components with a range of practical uses:
- Power Supply Filtering: Smooths voltage ripples in 12V–60V power supplies, such as those in LED drivers or small appliances, ensuring stable operation.
- Decoupling: Reduces noise in circuits powering microcontrollers or sensors, maintaining signal integrity.
- Audio Systems: Minimizes noise in audio amplifiers within 63V limits, leveraging low ESR for cleaner sound.
- Electronics Repair: Replaces aging capacitors in devices like power boards, vintage radios, or industrial equipment, where 47µF 63V ratings are common.
- Industrial Use: Suitable for industrial applications requiring reliable power smoothing, benefiting from the FR series’ low ESR and high ripple current handling.
The ultra-low ESR and 284mA ripple current rating make these capacitors particularly effective for applications where efficiency and stability are critical, such as in high-frequency circuits.
Considerations and Challenges
While the Panasonic FR series capacitors are robust, there are a few points to consider. The 5000-hour lifespan at 105°C is a strong specification, but actual performance depends on operating conditions. High temperatures or ripple currents beyond the rated 284mA can reduce lifespan, a common concern with electrolytic capacitors.
The 47µF capacitance at 63V is versatile, but it may not suit all needs. For circuits requiring higher capacitance or voltage, alternatives like Panasonic’s 1000uF 35V FM series might be more appropriate.
Why Choose Panasonic FR Series Capacitors?
Panasonic’s FR series is renowned for its ultra-low ESR and high ripple current handling, making it a top choice for applications requiring efficiency and reliability. The 47uF 63V capacitors in this pack offer a balance of performance and compactness, with a 5000-hour lifespan at 105°C and an operating range of -40°C to +105°C, ensuring they can handle challenging conditions.
Pacific Custom Engineering’s commitment to supplying genuine Panasonic components adds confidence in their authenticity, though careful installation and circuit design are essential to maximizing their lifespan.
Conclusion
The 6 x Aluminum Electrolytic Capacitor 47uF 63V 6x11mm Panasonic (FR Series) from Pacific Custom Engineering is a dependable choice for smoothing power, reducing noise, and stabilizing circuits in low to medium voltage applications. Whether you’re repairing vintage equipment, building an audio amplifier, or designing a power supply, this pack of six capacitors provides the performance and reliability needed.
Pay attention to operating conditions and polarity during installation to ensure optimal results.
You can explore this product further at https://pacificcustomengineering.com/product/6-x-aluminum-electrolytic-capacitor-47uf-63v-6x11mm-panasonic/.
