Description
The 12V Car Cigarette Lighter Plug Connector is provided in a pack of two, designed to extend the 12V power source from a vehicle’s cigarette lighter socket to compatible accessories. Each plug supports a voltage of 12V and is rated for a maximum current of 5A, delivering up to 60W of power, suitable for devices like air pumps, inverters, or car chargers.

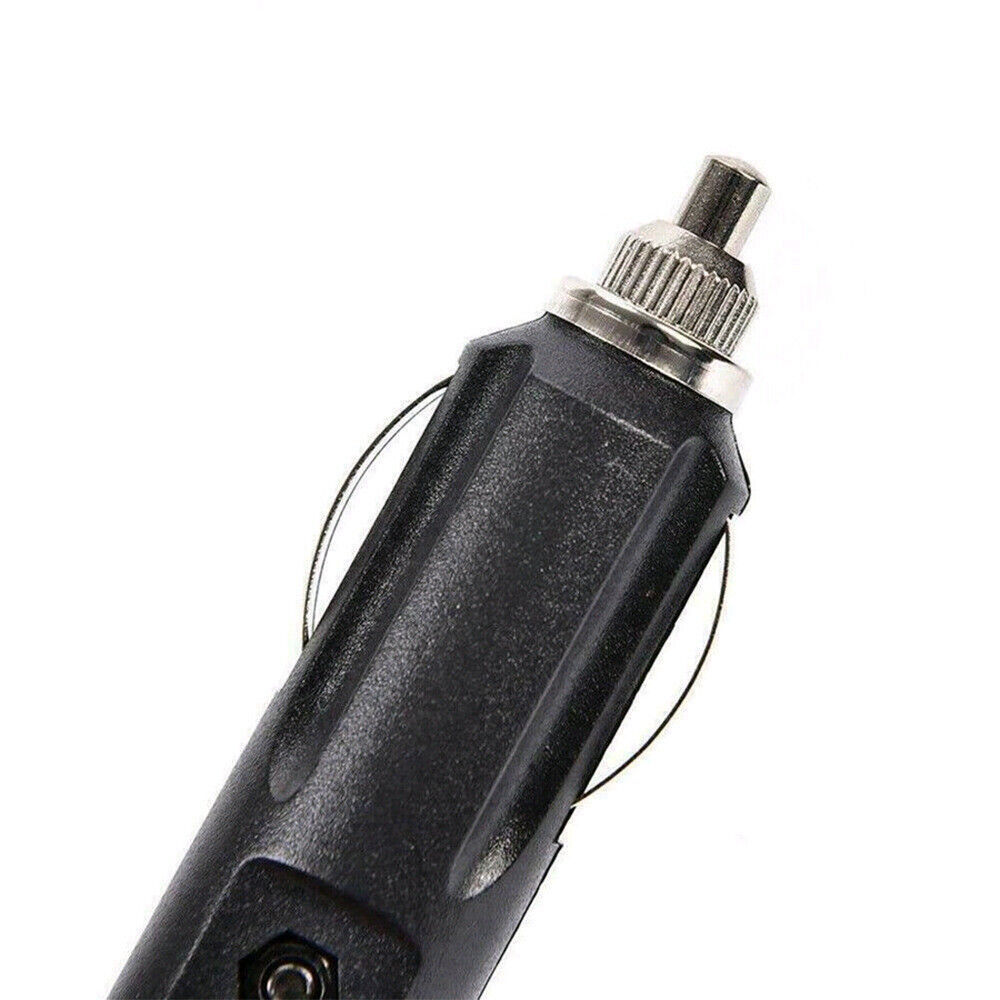

The plug features a standard male cigarette lighter connector with a spring-loaded center contact and a cylindrical shell, adhering to the ANSI/SAE J563 specification, where the center pin is the positive terminal (+12V) and the shell is the negative terminal (0V).
It includes a 5A fuse for circuit protection and a red LED indicator to show power status.
The plug requires soldering for wire attachment, with a body that splits for easy access to solder points, and measures 97mm (3.8 inches) in length. It is constructed from heat-resistant materials like ABS plastic and metal alloys, operating within a temperature range of -20°C to +80°C, based on typical standards for such connectors.
Key Features:
- Voltage and Current: Supports 12V, up to 5A (60W) – Powers a range of car accessories.
- Fuse Protection: Includes a 5A fuse – Protects against overcurrent conditions.
- LED Indicator: Red LED – Indicates power status for easy troubleshooting.
- Dimensions: 97mm (3.8 inches) in length – Compact for vehicle use.
- Construction: Made with ABS plastic and metal alloys – Heat-resistant for durability.
- Mounting: Requires soldering – Allows custom wire connections.
- Operating Temperature: -20°C to +80°C – Functions in typical automotive environments.
Common Applications:
- Car Accessories: Powers devices like air pumps, inverters, vacuum cleaners, or chargers via a cigarette lighter socket.
- DIY Repairs: Replaces broken plugs on car tire pumps or other 12V accessories, as noted in user feedback (Web ID 1).
- Portable Power: Extends 12V power for camping or road trips, supporting small appliances like heating pads.
- Electronics Testing: Provides a temporary 12V connection for testing automotive electronics.
Specifications:
- Brand: Pacific Custom Engineering
- Voltage: 12V
- Current: 5A (max)
- Power: 60W (max)
- Fuse: 5A
- LED Indicator: Red
- Length: 97mm (3.8 inches)
- Material: ABS plastic, metal alloys
- Mounting: Solder on cable
- Operating Temperature: -20°C to +80°C
- Quantity: 2 pieces per pack
Quality Assurance:
Pacific Custom Engineering supplies components designed for consistent performance in automotive applications.
