Description
The 1N5060 TFK Diode Avalanche 400V 2A SOD57 1N5060TR Vishay is provided in a pack of five, featuring a standard avalanche sinterglass diode designed for rectification and protection in electronic circuits. It has a maximum repetitive peak reverse voltage of 400V and a continuous forward current rating of 2A, with a peak forward surge current of 50A for short durations (8.3ms).

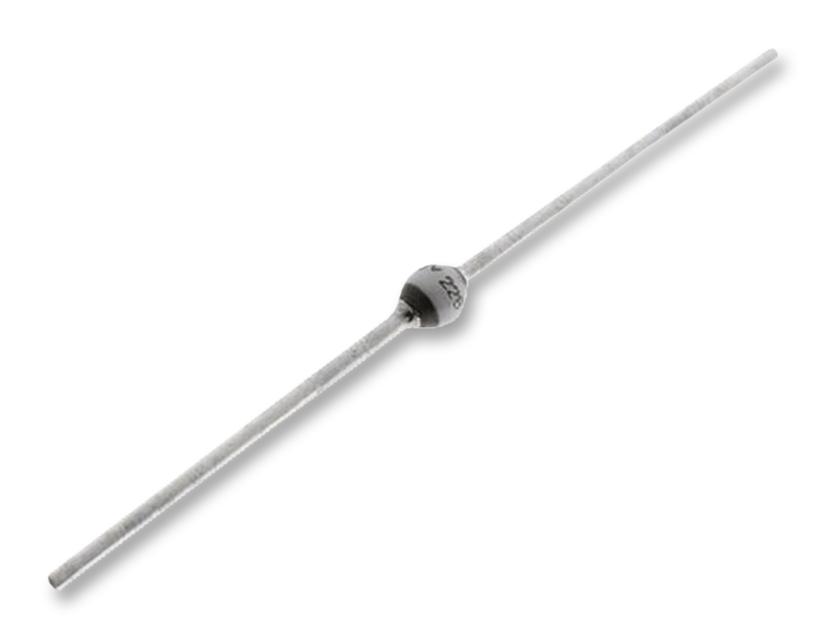

The diode is housed in a hermetically sealed axial-leaded glass envelope (SOD-57 package), measuring approximately 4mm in diameter and 7.5mm in length, with a forward voltage drop of 1.15V at 2.5A.
It features controlled avalanche characteristics, a low reverse current of 1µA at 400V, and a reverse recovery time of 4µs, making it suitable for applications requiring fast recovery and high surge handling.
The operating temperature range is -55°C to +175°C, and the diode’s glass-passivated junction ensures durability in harsh conditions.
Key Features:
- Voltage Rating: 400V repetitive peak reverse voltage – Suitable for circuits up to 400V.
- Current Rating: 2A continuous, 50A peak surge (8.3ms) – Handles high surge currents effectively.
- Package: SOD-57, axial-leaded glass envelope, approximately 4mm x 7.5mm – Compact for through-hole mounting.
- Forward Voltage: 1.15V at 2.5A – Ensures efficient power delivery.
- Reverse Recovery Time: 4µs – Supports fast switching applications.
- Reverse Leakage Current: 1µA at 400V – Minimizes power loss in reverse bias.
- Operating Temperature: -55°C to +175°C – Functions in a wide range of environments.
Common Applications:
- Rectification: Converts AC to DC in power supplies or battery chargers within 400V limits.
- Overvoltage Protection: Absorbs voltage spikes in circuits, leveraging its avalanche characteristics.
- Switching Circuits: Used in high-frequency rectification due to its 4µs recovery time.
- Industrial Equipment: Protects sensitive components in industrial control systems or motor drives.
- Electronics Repair: Replaces diodes in vintage equipment or power boards requiring 400V 2A ratings.
Specifications:
- Brand: Vishay
- Model: 1N5060 (1N5060TR)
- Type: Standard Avalanche Sinterglass Diode
- Voltage: 400V (repetitive peak reverse)
- Current: 2A (continuous), 50A (peak surge, 8.3ms)
- Package: SOD-57, axial-leaded
- Dimensions: Approximately 4mm (D) x 7.5mm (L)
- Forward Voltage: 1.15V at 2.5A
- Reverse Leakage Current: 1µA at 400V
- Reverse Recovery Time: 4µs
- Operating Temperature: -55°C to +175°C
- Quantity: 5 pieces per pack
- Datasheet: Available at https://pacificcustomengineering.com/wp-content/uploads/2023/09/1n5059.pdf
Quality Assurance:
Pacific Custom Engineering supplies genuine Vishay components, ensuring consistent performance for various circuit applications
