Description

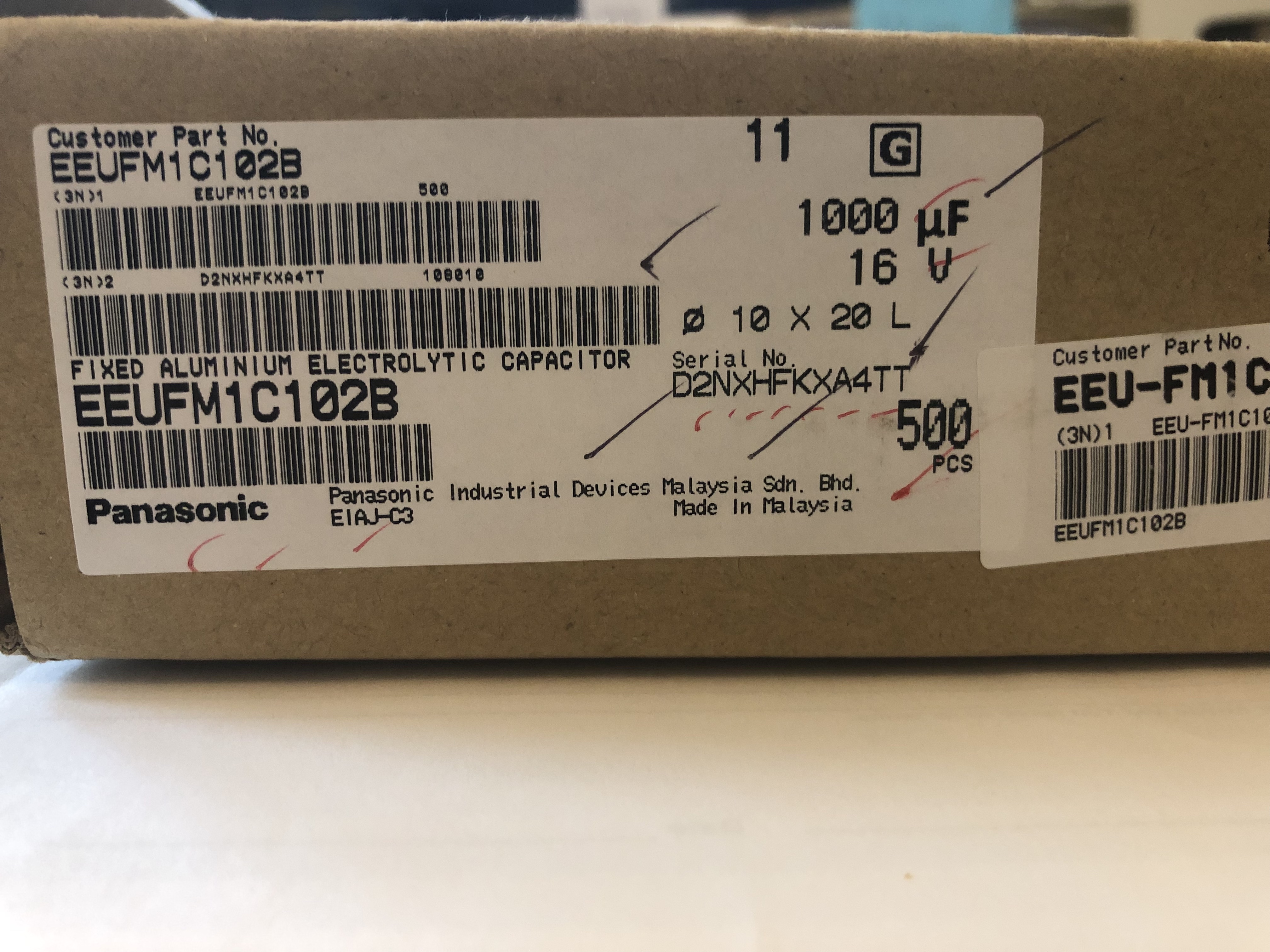

The Panasonic FM Series 1000µF 16V Aluminum Electrolytic Capacitor is available in a pack of six (Part # EEU-FM1C102B). These radial-lead capacitors feature low impedance, high ripple current handling, and consistent performance within a 10mm x 20mm size. They are designed for low-voltage circuits requiring significant capacitance for filtering and power stabilization in compact configurations.
Key Features:
Capacitance: 1000µF – Perfect for effective energy storage and filtering.
Voltage Rating: 16V – Great for circuits up to 15V, including 5V and 12V systems.
Tolerance: ±20% – Ensures dependable operation across various setups.
Low ESR: Panasonic FM’s ultra-low impedance reduces heat and boosts efficiency.
High Ripple Current: Handles demanding loads in power supplies and digital circuits effortlessly.
Long Lifespan: Rated for up to 5000 hours at 105°C, built for long-term use.
Compact Radial Design: 10mm diameter x 20mm height with a 5mm lead pitch, fitting tight PCB spaces.
Polarized: Clearly marked for fast, accurate installation.
Common Applications:
Power Supply Smoothing: Stabilize voltage in 5V–12V power adapters, USB devices, or small electronics.
Decoupling: Provide clean power for microcontrollers, sensors, or audio ICs in compact systems.
Audio Equipment: Filter noise in portable speakers, headphone amps, or car audio for better sound quality.
LED Drivers: Maintain steady current in 12V–15V LED lighting setups.
Repair Projects: Replace worn capacitors in routers, monitors, or gaming consoles with a premium upgrade.
Why Panasonic FM Series?
The FM series offers 40%–70% lower impedance than standard electrolytic capacitors, ensuring superior stability and durability. This six-pack is a practical choice for bulk repairs, prototyping, or enhancing your designs with Panasonic’s renowned quality.
Specifications:
Brand: Panasonic
Series: FM
Capacitance: 1000µF
Voltage: 16V DC
Tolerance: ±20%
Dimensions: 10mm (D) x 20mm (H)
Lead Spacing: 5mm
Operating Temperature: -40°C to +105°C
Quantity: 6 pieces per pack
Quality Assurance:
Pacific Custom Engineering supplies genuine Panasonic components, ensuring consistent performance for a range of circuit uses.
Data Sheet: https://pacificcustomengineering.com/wp-content/uploads/2023/11/data-sheet-Panasonic-FM-ABA0000C1018.pdf
