Description

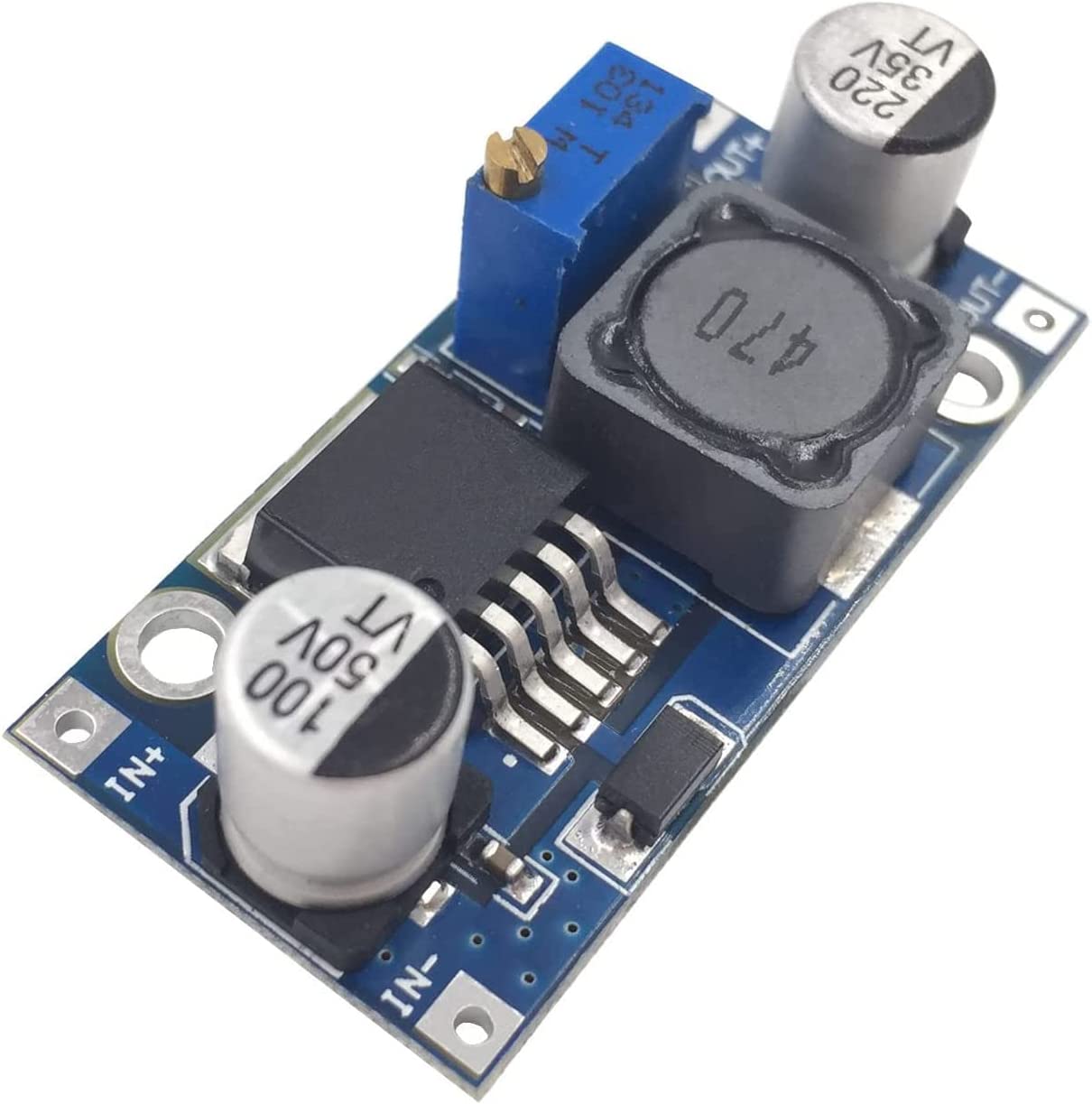

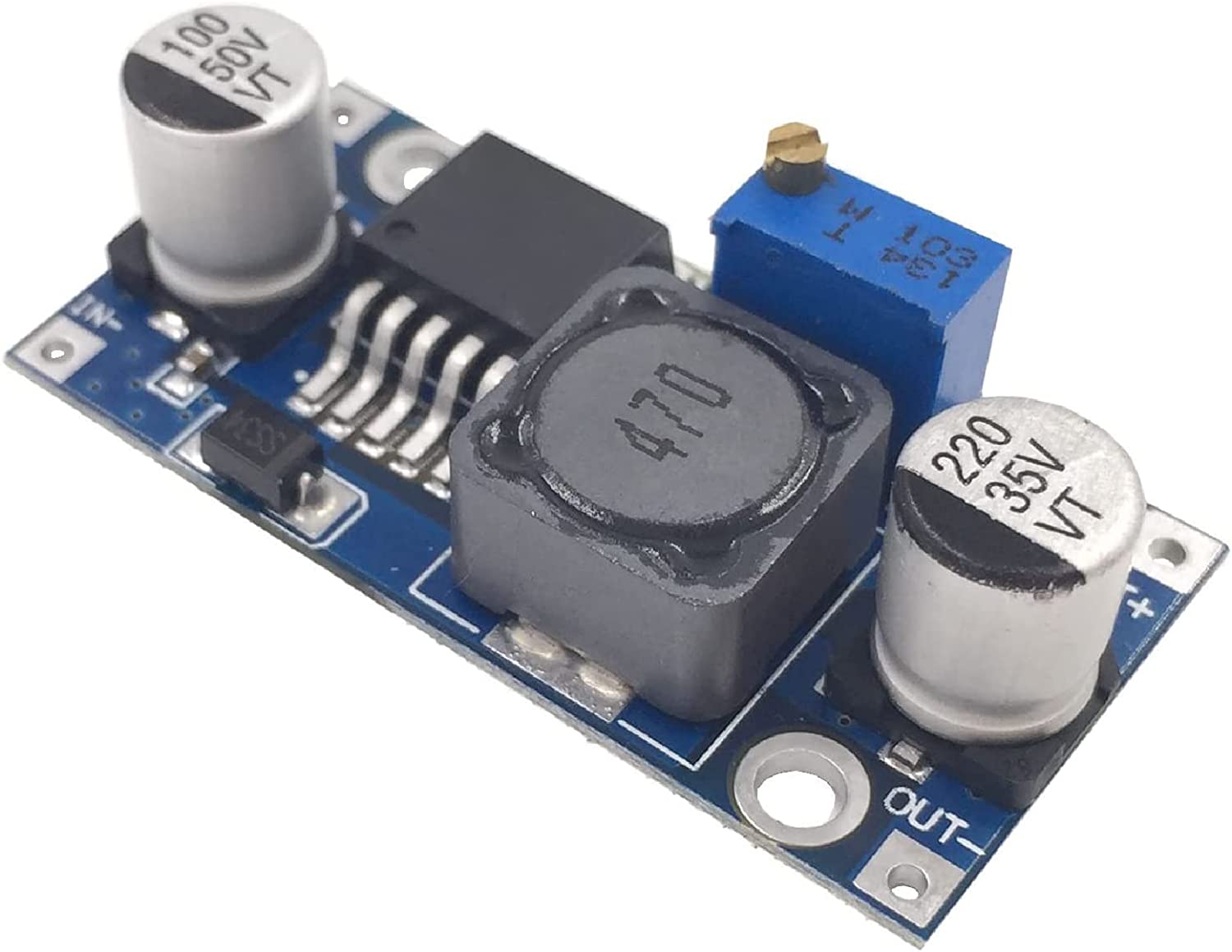

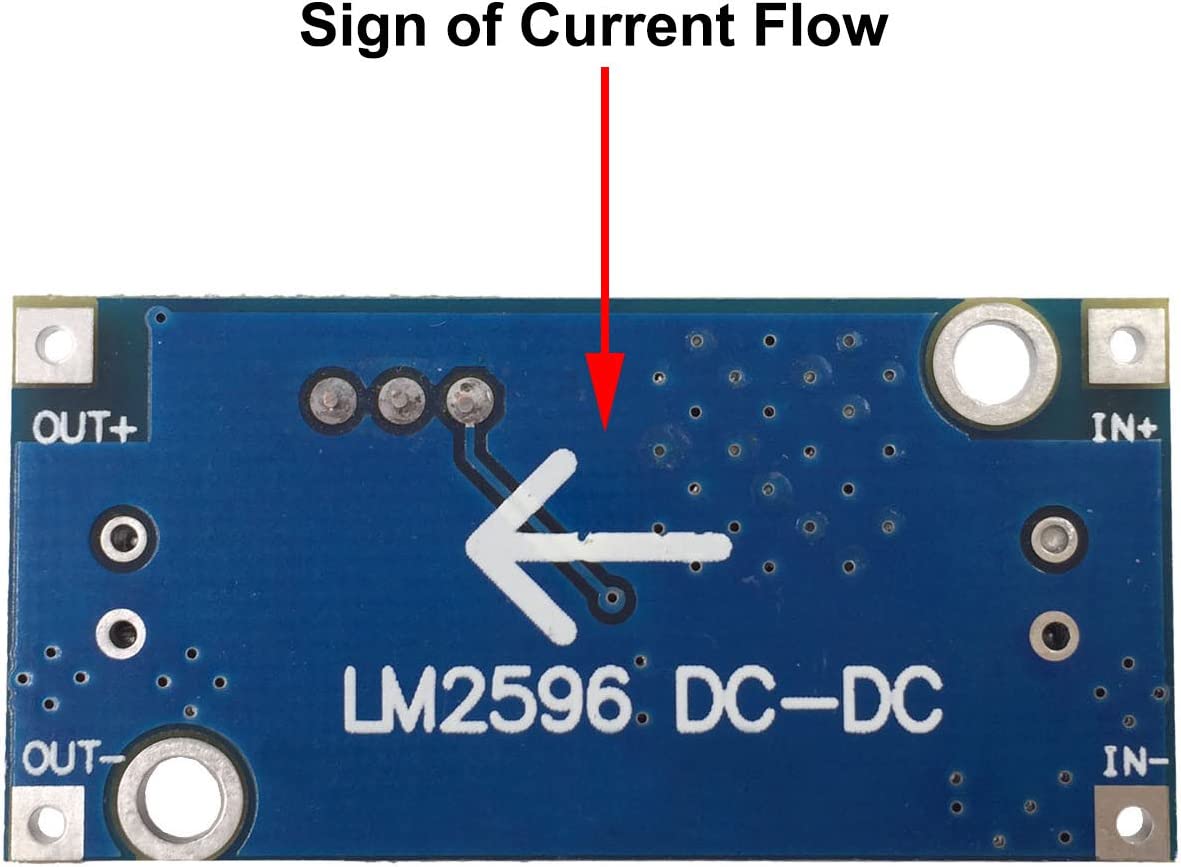

The LM2596 Buck Converter Voltage Regulator is a DC-to-DC step-down module designed to convert an input voltage range of 3.2V to 35V to an adjustable output voltage of 1.25V to 30V. This module utilizes the LM2596 IC, a switching regulator capable of delivering a maximum output current of 3A, though continuous operation is recommended at 2A or less to ensure stability and prevent overheating. The module features a potentiometer for output voltage adjustment, a built-in LED indicator for power status, and a compact design measuring approximately 43mm x 21mm x 14mm. It operates with a switching frequency of around 150kHz, offering a typical efficiency of up to 92% depending on input/output voltage differential and load. The device supports a temperature range of -45°C to +85°C and includes basic protection features such as over-temperature and short-circuit safeguards.
Key Features:
- Input Voltage: 3.2V to 35V DC – Suitable for a variety of power sources, including batteries and adapters.

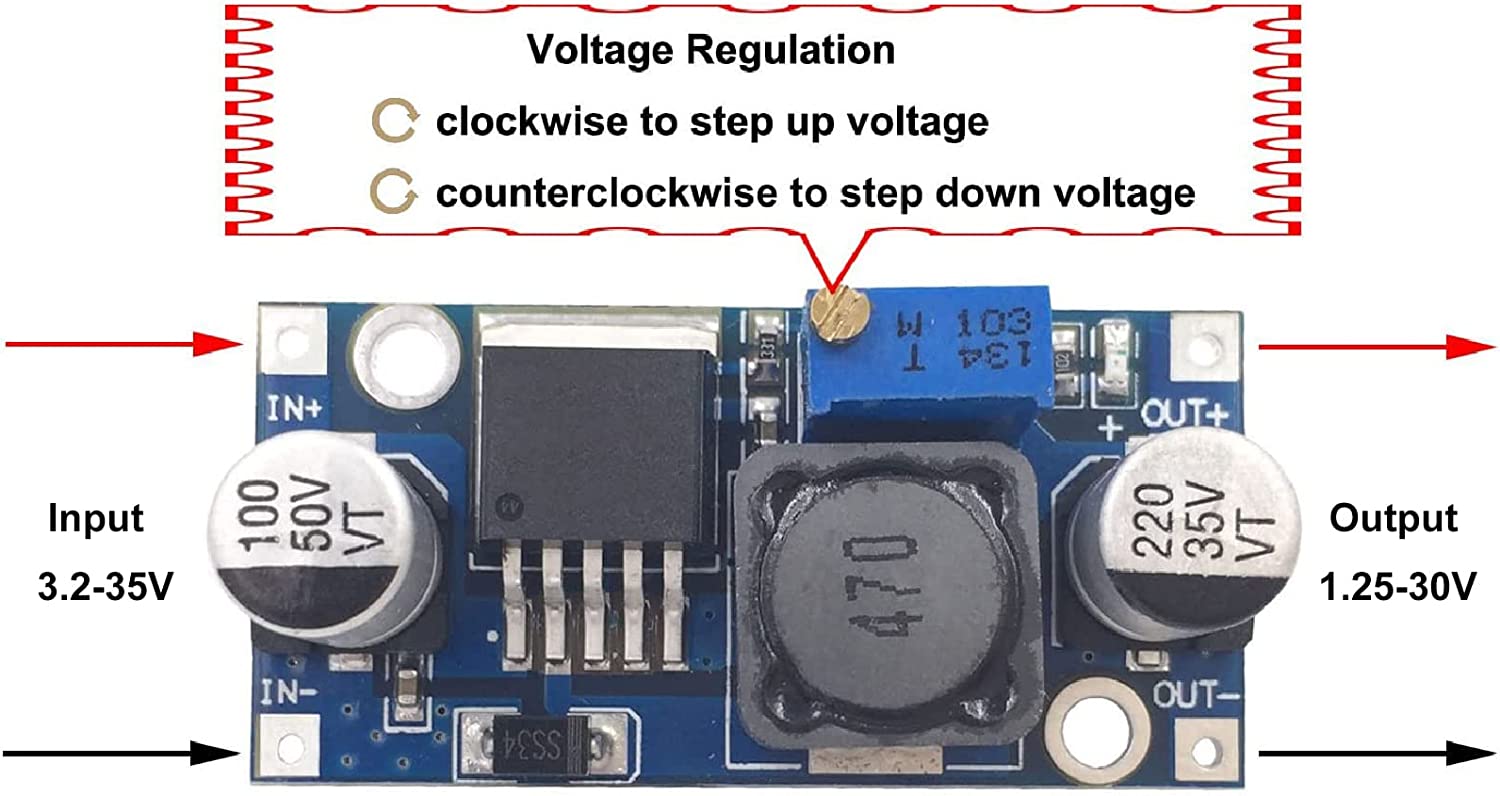

- Output Voltage: 1.25V to 30V DC, adjustable via potentiometer – Requires input voltage to be at least 1.5V above the desired output.
- Output Current: Maximum 3A, recommended continuous use at 2A or below – Heat dissipation recommended for loads above 10W.
- Dimensions: Approximately 43mm x 21mm x 14mm – Compact for DIY or embedded applications.
- Switching Frequency: Approximately 150kHz – Balances efficiency and size.
- Efficiency: Up to 92% (varies with load and voltage differential) – Performance depends on operating conditions.
- Operating Temperature: -45°C to +85°C – Wide range for diverse environments.
- Protection: Includes over-temperature and short-circuit protection – Effectiveness varies with usage.
Common Applications:
- Power Supply Regulation: Steps down voltage for microcontrollers, sensors, or LED strips in DIY electronics.
- Battery-Powered Devices: Converts battery output (e.g., 12V or 24V) to stable lower voltages like 5V or 3.3V.
- Automotive Electronics: Adjusts vehicle power (e.g., 12V to 5V) for GPS or charging circuits.
- Educational Projects: Used to demonstrate DC-DC conversion principles in electronics courses.
- Repairs: Replaces faulty regulators in power supplies or small appliances.
Specifications:
- Brand: Pacific Custom Engineering
- Model: LM2596 Buck Converter
- Input Voltage: 3.2V to 35V DC
- Output Voltage: 1.25V to 30V DC (adjustable)
- Output Current: 3A (max), 2A (recommended continuous)
- Dimensions: Approximately 43mm x 21mm x 14mm
- Switching Frequency: Approximately 150kHz
- Efficiency: Up to 92% (varies with conditions)
- Operating Temperature: -45°C to +85°C
- Quantity: 1 module per pack
Quality Assurance:
