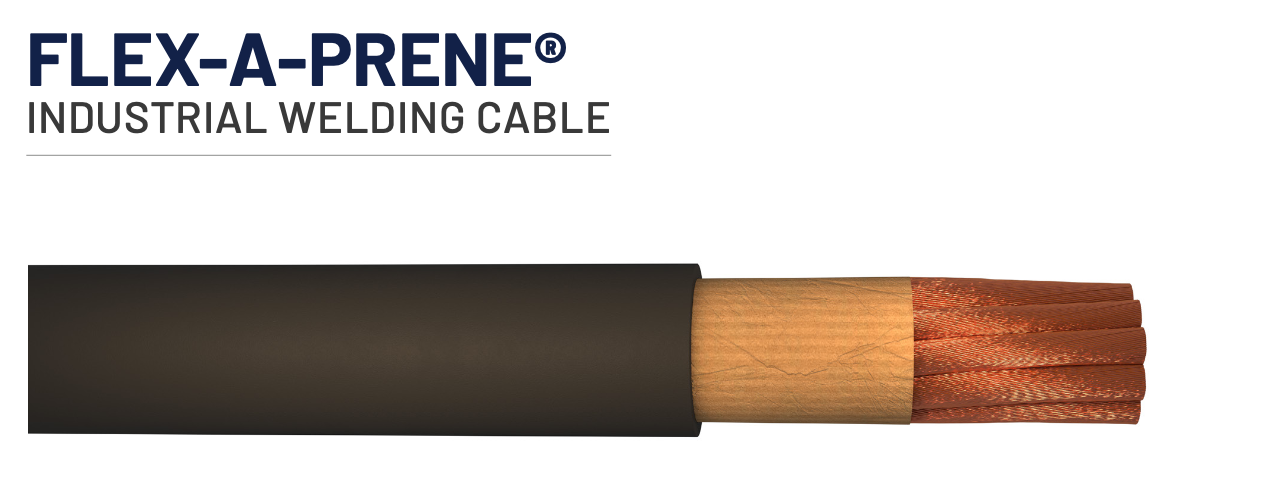

2/0 AWG WELDING CABLE FLEX-A-PRENE 600 VOLT BLACK – Sold per Foot

The Flex-A-Prene® 2/0 AWG Welding and Battery Cable, sold by the foot, is a highly flexible, heavy-duty cable designed for high-current applications. Rated for 600 V, this black cable features a single conductor made of finely stranded, fully annealed copper (Class K, 30 AWG strands) for excellent conductivity and flexibility. The outer jacket is constructed from durable, oil- and water-resistant EPDM rubber, providing resistance to abrasion, chemicals, and UV exposure. With an outer diameter of approximately 0.615 inches (15.6 mm) and a conductor diameter of 0.365 inches (9.27 mm), it supports current ratings up to 223 A for welding (per NEC standards) and 190 A for battery applications (based on SAE J-1127). The cable operates reliably in temperatures from -50°C to +105°C, making it suitable for harsh environments. Customers can specify the desired length in feet for custom applications. For detailed specifications, refer to the manufacturer’s documentation or contact Pacific Custom Engineering.

Key Features

• Conductor: 2/0 AWG, Class K stranded copper (30 AWG strands) for high conductivity and flexibility.
• Voltage Rating: 600 V for welding and battery applications.
• Current Capacity: Up to 223 A (welding) or 190 A (battery), per NEC and SAE standards.
• Jacket: EPDM rubber, resistant to oil, water, abrasion, chemicals, and UV exposure.
• Dimensions: 0.615 inches (15.6 mm) outer diameter, 0.365 inches (9.27 mm) conductor diameter.
• Temperature Range: -50°C to +105°C for reliable performance in extreme conditions.
• Custom Length: Sold by the foot, allowing user-specified lengths.

• Welding: Connects welding machines to electrodes in industrial or automotive settings.
• Battery Systems: Links batteries in vehicles, RVs, or marine applications.
• Power Distribution: Supplies high-current power in portable generators or heavy equipment.
• Industrial Use: Supports motor leads or grounding in construction and manufacturing.
• Custom Projects: Provides flexible, durable cabling for DIY or specialized electrical setups.

• Brand: Flex-A-Prene®
• Conductor Size: 2/0 AWG
• Conductor Material: Class K stranded copper (30 AWG strands)
• Voltage Rating: 600 V
• Current Rating: 223 A (welding), 190 A (battery)
• Jacket Material: EPDM rubber
• Outer Diameter: ~0.615 inches (15.6 mm)
• Conductor Diameter: ~0.365 inches (9.27 mm)
• Temperature Range: -50°C to +105°C
• Color: Black
• Quantity: Sold by the foot
• Standards: Meets NEC (welding) and SAE J-1127 (battery) requirements
