Description
The Texas Instruments UA741CP IC Op-Amp is provided in a pack of six, featuring a general-purpose operational amplifier in an 8-pin DIP (Dual In-line Package).
This single-channel amplifier operates with a gain bandwidth product of 1MHz and a slew rate of approximately 0.5V/µs, designed for low-power applications.
It supports a supply voltage range of 7V to 36V (±3.5V to ±18V) and is housed in a through-hole 8-PDIP package measuring approximately 9.81mm x 6.35mm x 4.57mm. The UA741CP offers an input offset voltage of up to 5mV, an input bias current of 500nA, and a common-mode rejection ratio (CMRR) of 70dB to 90dB, making it suitable for linear amplification tasks.
It operates within a temperature range of 0°C to +70°C and consumes an operating current of about 1.7mA. This component is widely used in instrumentation, buffer, and general-purpose amplifier circuits.
Key Features:
- Bandwidth: 1MHz gain bandwidth product – Suitable for low-frequency amplification.
- Supply Voltage: 7V to 36V (±3.5V to ±18V) – Versatile for various power configurations.
- Package: 8-PDIP, approximately 9.81mm x 6.35mm x 4.57mm – Standard through-hole mounting.
- Slew Rate: 0.5V/µs – Adequate for moderate-speed applications.
- Input Characteristics: Input offset voltage up to 5mV, input bias current of 500nA.
- CMRR: 70dB to 90dB – Ensures good noise rejection.
- Operating Temperature: 0°C to +70°C – Suitable for typical indoor environments.
- Operating Current: Approximately 1.7mA – Low power consumption for general use.
Common Applications:
- Instrumentation Amplifiers: Amplifies low-level signals in measurement devices.
- Buffer Circuits: Provides impedance matching or signal isolation in audio or control systems.
- Signal Processing: Used in filters or integrators for analog signal conditioning.
- Educational Projects: Serves as a learning tool for students exploring op-amp circuits.
- Electronics Repair: Acts as a replacement for aging op-amps in vintage equipment or industrial controls.

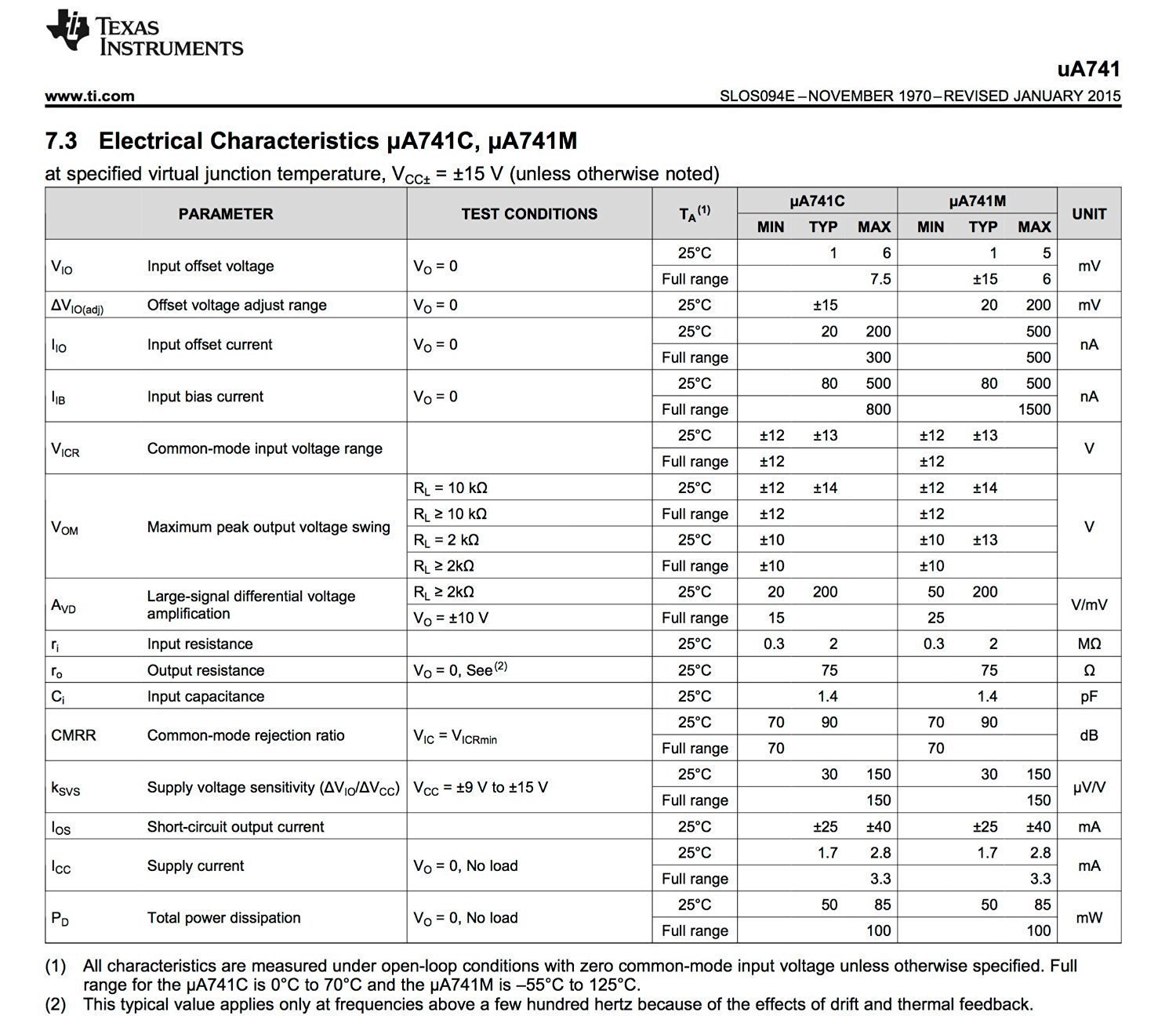

Specifications:
- Brand: Texas Instruments
- Model: UA741CP
- Type: General-purpose operational amplifier
- Package: 8-PDIP
- Gain Bandwidth Product: 1MHz
- Supply Voltage Range: 7V to 36V (±3.5V to ±18V)
- Slew Rate: 0.5V/µs
- Input Offset Voltage: Up to 5mV
- Input Bias Current: 500nA
- CMRR: 70dB to 90dB
- Operating Current: Approximately 1.7mA
- Operating Temperature: 0°C to +70°C
- Dimensions: Approximately 9.81mm x 6.35mm x 4.57mm
- Quantity: 6 pieces per pack
Quality Assurance:
Pacific Custom Engineering provides genuine Texas Instruments components, ensuring consistent performance for development and repair applications.
