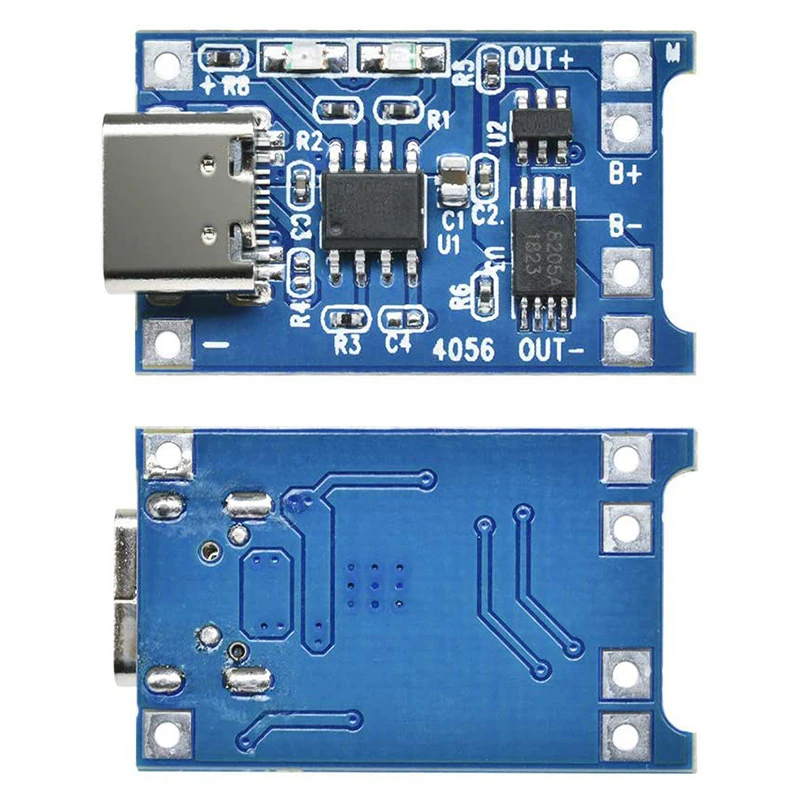

USB Type-C Lithium Li-ion 18650 Battery Charger Circuit Board Module, TP4056 1A

Free & Fast Shipping from Washington State

Type-c Micro USB 5V 1A 18650 TP4056 Lithium Battery Charger Module Charging Board With Protection Dual Functions 1A

Brand:     Generic
Manufacturer Part Number:     TP4056
Input Connection:     USB Type C Female Plug +/-
Through Hole Solder Connections
Board Dimensions:     0.690″ x 1.10″
No Mounting Screw Holes
Indicator Light:s     Two LED
– Blue (Power/Charge Complete)
– Red (Charging)
Charging Rate:     1 Amp Max (RPROG/R3 = 1K)
Controller:     TP4056H
SOP-8 Package
2.9V Trickle Charge
4.20V Charge
MOSFET     8205A Dual N-Channel
Battery Protection:     DW01A
SOT-23-6 Package
4.300 Overcharge Detection Voltage
2.500 Overdischarge Protection Voltage
3 Amp Overcurrent Protection
Battery Connections:     B+/B-
Output Connections:    OUT+/OUT-
Country of Origin     China
Insulated heatsink recommended when using!
