Powering Your Circuits: A Look at the Panasonic FM Series 1000uF 16V Capacitors

Products & Deals
When it comes to reliable components for electronic circuits, capacitors play a critical role in ensuring stability and performance. The 6 x Aluminum Electrolytic Capacitor 1000uF 16V 20% 10x20mm FM Radial Panasonic (EEU-FM1C102B) from Pacific Custom Engineering offers a pack of six high-quality capacitors designed for applications requiring low impedance and durability.
Let’s dive into the features, applications, and considerations of this Panasonic FM series capacitor to see how it can fit into your next project.

What Are the Panasonic FM Series Capacitors?

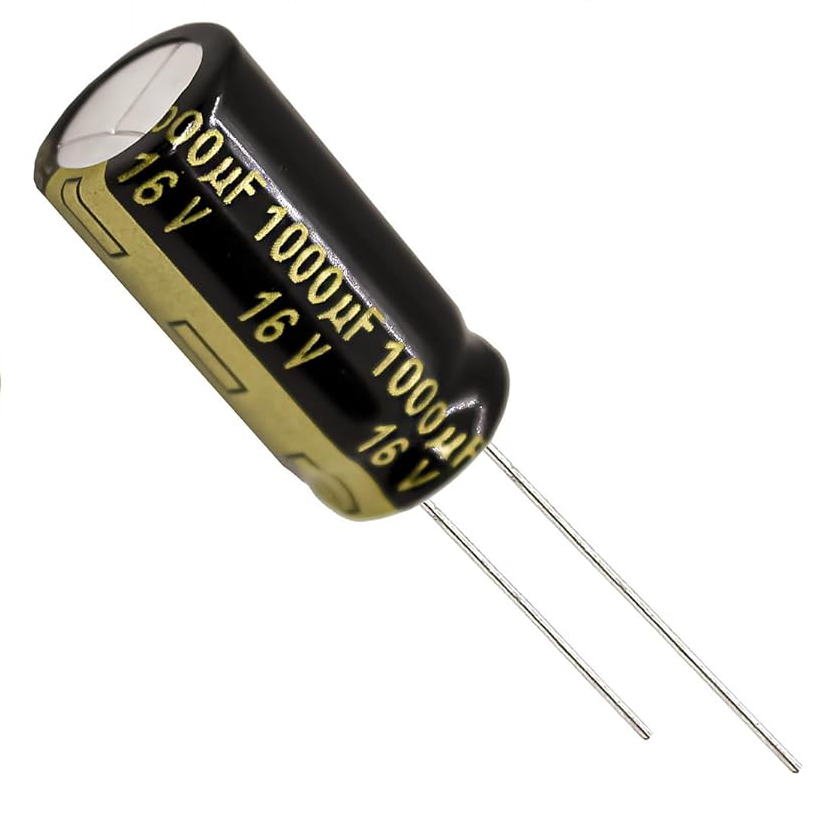

The Panasonic FM series, specifically the EEU-FM1C102B, is a radial-lead aluminum electrolytic capacitor known for its ultra-low equivalent series resistance (ESR). This pack includes six capacitors, each with a capacitance of 1000µF and a voltage rating of 16V, with a tolerance of ±20%.
Measuring 10mm in diameter and 20mm in height, these capacitors feature a lead spacing of 5mm, making them suitable for standard PCB mounting. They are designed to operate at temperatures up to 105°C with a lifespan of 5000 hours, offering robust performance for demanding applications.
The capacitors are polarized, with clear markings to ensure correct installation orientation, and are constructed to handle a ripple current of 2180mA, as noted in technical specifications.
Panasonic’s FM series is tailored for applications where low ESR, high ripple current handling, and long life are essential, making these capacitors a go-to choice for power supply circuits and other high-performance setups.

Key Features and Specifications

  • Capacitance and Voltage: 1000µF at 16V, with a ±20% tolerance, ideal for low-voltage circuits.
  • Dimensions: 10mm diameter x 20mm height, with a 5mm lead spacing, fitting compact PCB designs.
  • Low ESR: Ultra-low equivalent series resistance, minimizing energy loss in high-frequency applications.
  • Ripple Current: Rated for 2180mA, supporting stable performance in power circuits.
  • Lifespan: 5000 hours at 105°C, ensuring durability in elevated temperatures.
  • Operating Range: Suitable for -55°C to +105°C, covering a wide range of environments.
Pacific Custom Engineering provides these capacitors as genuine Panasonic components, ensuring consistent quality for your electronic needs.

Practical Applications

The Panasonic FM series 1000uF 16V capacitors are versatile components with a range of practical uses:
  • Power Supply Filtering: Smooths voltage ripples in 5V–15V power supplies, such as those in USB chargers, audio equipment, or small appliances.
  • Decoupling: Stabilizes power for microcontrollers, sensors, or digital circuits in low-voltage systems, reducing noise.
  • Audio Systems: Reduces noise in amplifiers or speakers within 16V limits, leveraging the low ESR for cleaner sound.
  • LED Drivers: Supports consistent current in low-voltage LED circuits, ensuring reliable operation.
  • Electronics Repair: Acts as a replacement for capacitors in devices like motherboards, power boards, or consumer electronics, where low ESR is critical.
The low ESR and high ripple current handling make these capacitors particularly effective in applications where efficiency and stability are paramount, such as switching power supplies.

Why Choose the Panasonic FM Series?

Panasonic’s FM series stands out for its focus on low ESR and high ripple current handling, making it a reliable choice for power-intensive applications. The 5000-hour lifespan at 105°C, combined with a wide operating temperature range of -55°C to +105°C, ensures these capacitors can withstand challenging conditions. Pacific Custom Engineering’s provision of genuine Panasonic components adds confidence in their authenticity, though users should always double-check polarity and operating conditions to ensure optimal performance.

Conclusion

The 6 x Aluminum Electrolytic Capacitor 1000uF 16V 20% 10x20mm FM Radial Panasonic (EEU-FM1C102B) from Pacific Custom Engineering offers a dependable solution for low-voltage circuits requiring low ESR and high reliability.
Whether you’re filtering power supplies, stabilizing microcontroller circuits, or repairing audio equipment, this pack of six capacitors provides the performance and durability needed for a variety of applications.
You can explore this product further at /products/6-x-aluminum-electrolytic-capacitor-1000uf-16v-20-10x20mm-fm-radial-panasonic-eeu-fm1c102b/.
