Description

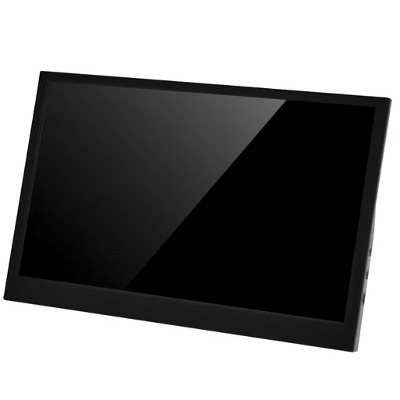

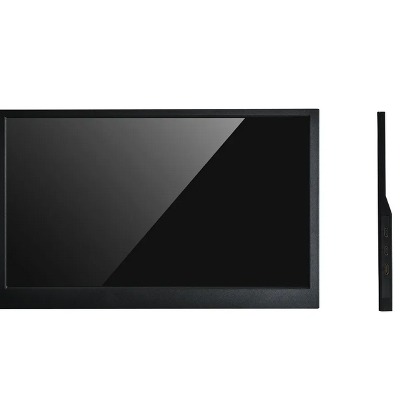

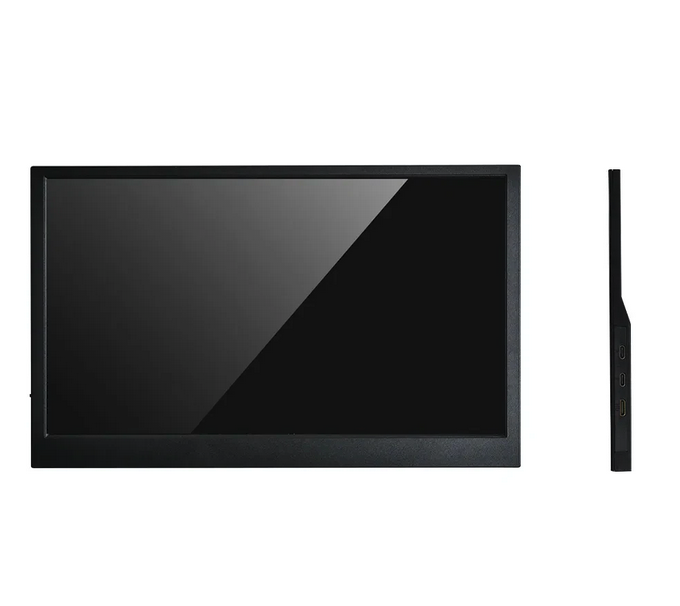

The 11.6 Inch Portable Monitor features a 1366×768 resolution TFT LCD display, designed for use with a variety of devices including PCs, Raspberry Pi, laptops, PS4, Xbox 360, and Nintendo Switch via an HDMI-compatible connection.
The monitor has a 16:9 display ratio, a 60Hz refresh rate, and a brightness of 200cd/m², with a contrast ratio of 800:1, providing clear visuals for basic applications.

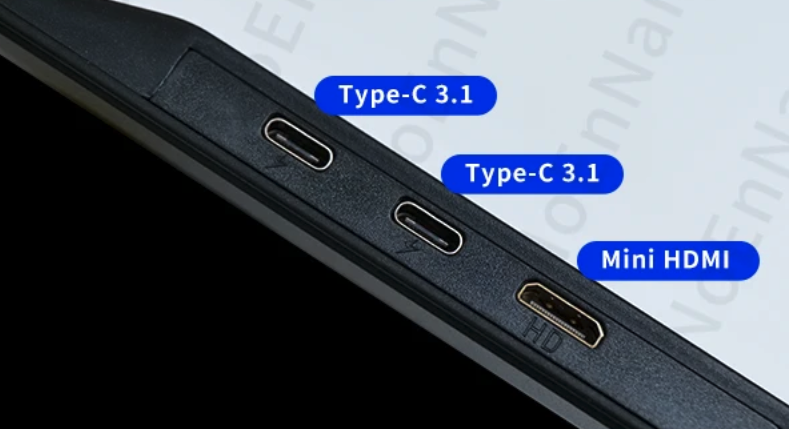

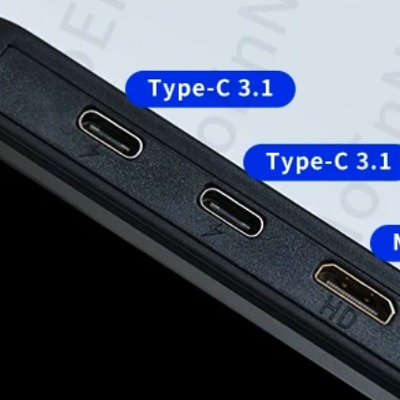

It includes built-in speakers and supports Type-C and HDMI-compatible dual output connections, with a Type-C port for power and signal transmission (requires a 5V/3A adapter if the screen does not light up).
The monitor measures approximately 290mm x 188mm x 12.5mm and weighs around 600 grams, making it portable for travel or secondary display use.
It is compatible with Thunderbolt-enabled phones and laptops via Type-C, though smartphones may require an adapter to convert to HDMI.
The package includes a portable monitor, a Type-C to Type-C cable, a USB-A to Type-C cable, a mini HDMI cable, and a display bracket.
It operates within a temperature range of -10°C to +60°C, based on typical TFT display standards.
Key Features:
- Display: 11.6-inch TFT LCD, 1366×768 resolution – Offers clear visuals for basic gaming and productivity.
- Connectivity: HDMI-compatible and Type-C dual output – Supports devices like Raspberry Pi, PS4, Xbox 360, and laptops.
- Refresh Rate: 60Hz – Suitable for standard video playback and gaming.
- Brightness and Contrast: 200cd/m² brightness, 800:1 contrast ratio – Provides adequate visibility in moderate lighting.
- Dimensions and Weight: Approximately 290mm x 188mm x 12.5mm, 600 grams – Lightweight for portability.
- Built-in Speakers: Includes audio output for convenience.
- Operating Temperature: Suitable for -10°C to +60°C environments.
Common Applications:
- Secondary Display: Extends screens for laptops or PCs, useful for multitasking or presentations.

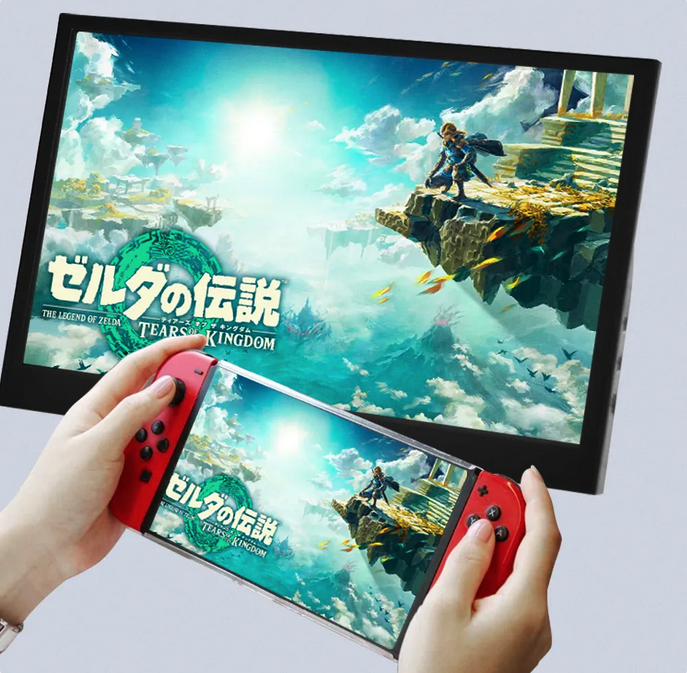

- Gaming: Connects to PS4, Xbox 360, or Nintendo Switch for portable gaming setups.
- Raspberry Pi Projects: Serves as a display for Raspberry Pi-based applications, such as DIY projects or media centers.
- Industrial Use: Functions as a monitor for industrial or medical equipment with HDMI output.
- Video Playback: Displays videos, TV series, or photos on a larger screen when connected to compatible devices.
Specifications:
- Brand: Pacific Custom Engineering
- Display Size: 11.6 inches
- Resolution: 1366×768
- Panel Type: TFT LCD
- Display Ratio: 16:9
- Refresh Rate: 60Hz
- Brightness: 200cd/m²
- Contrast Ratio: 800:1
- Connectivity: HDMI-compatible, Type-C
- Dimensions: Approximately 290mm x 188mm x 12.5mm
- Weight: Approximately 600 grams
- Operating Temperature: -10°C to +60°C
- Quantity: 1 monitor per pack
Quality Assurance:
Pacific Custom Engineering provides genuine components, ensuring consistent performance for portable display applications.
