Description

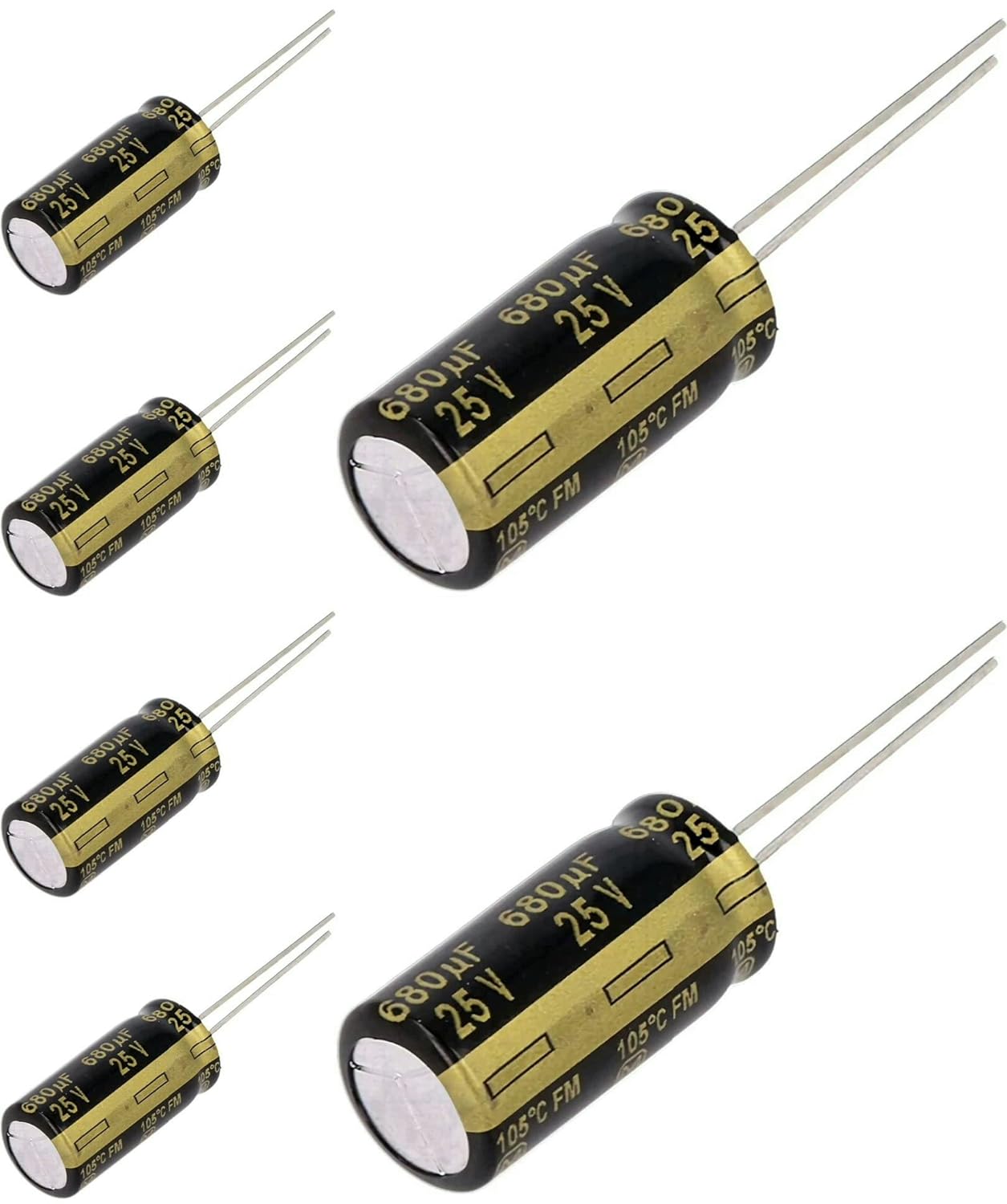

The Panasonic FM Series 680µF 25V Aluminum Electrolytic Capacitor is available in a pack of six (Part # EEU-FM1E681). These radial-lead capacitors feature low impedance, high ripple current handling, and consistent performance within a 10mm x 20mm size. They are designed for mid-voltage circuits requiring moderate-to-high capacitance for filtering and power stabilization in compact layouts.
Key Features:
Capacitance: 680µF – Provides capacity for significant energy storage and voltage smoothing.
Voltage Rating: 25V – Compatible with circuits up to 24V, including 12V and 15V systems.
Tolerance: ±20% – Ensures reliable operation across various conditions.
Low ESR: The FM series offers reduced impedance, contributing to lower heat generation and improved efficiency.
High Ripple Current: Rated at 1820mA, capable of handling substantial load fluctuations.
Lifespan: Rated for up to 5000 hours at 105°C, supporting long-term use in typical applications.
Radial Design: 10mm diameter x 20mm height with a 5mm lead pitch, fitting standard PCB configurations.
Polarized: Marked to indicate proper installation orientation.
Common Applications:
Power Supply Filtering: Stabilizes voltage in 12V–24V power supplies, such as adapters or small electronic devices.
Decoupling: Maintains steady power for microcontrollers, sensors, or digital circuits under varying loads.
Audio Systems: Reduces noise in amplifiers or audio equipment operating within 25V limits.
LED Drivers: Supports consistent current in 12V–24V LED circuits.
Electronics Repair: Acts as a replacement for capacitors in power boards, routers, or consumer electronics.
About Panasonic FM Series:
The FM series is noted for 40%–70% lower impedance compared to standard electrolytic capacitors, enhancing stability and efficiency. This six-pack serves as a practical option for repairs, prototyping, or circuit applications requiring dependable performance, reflecting Panasonic’s engineering standards.
Specifications:
Brand: Panasonic
Series: FM
Capacitance: 680µF
Voltage: 25V DC
Tolerance: ±20%
Dimensions: 10mm (D) x 20mm (H)
Lead Spacing: 5mm
Operating Temperature: -40°C to +105°C
Quantity: 6 pieces per pack
